  • TI-160 Wynne Corrector
    the best corrector for parabolics

TI-160 Wynne Corrector

The most advanced solution for extremely fast parabolic mirrors

TI-160 Wynne Corrector is the only professional corrector optimized for extremely fast parabolic mirrors from f/3.5 to down f/2.5 !

With the huge  aperture diameter of 160 mm and with the use of special glasses it is the most performing corrector in the market allowing extremely wide field corrector and field illumination.

Our TI-160 Wynne Corrector has been designed to have a 82 mm of back-focus allowing an easy use of any combination of  cameras,  filter-wheel and adapters.

Our TI-160 Wynne Corrector due to its unique performances and characteristics it is the best solution for high end prime focus combination in super-fast parabolic mirrors with a diameter above 450 mm.

THE MOST IMPORTANT FEATURES:

  • Aperture diameter: 160 mm
  • Barrel total length: 274 mm
  • Barrel max diameter: 180 mm
  • Back-focus from flange: 82 mm
  • Weight: 3.2 kg
  • Lenses: n. 3 – ED lens and special glasses
  • Lens coating: 400-900 AR coating
  • Optimized for: f/2.5 to f/3.5 parabolic mirrors

  • TI-160 Wynne Corrector     –    Price:  € 7.800,–

       Special offer for order before 31 Dec 2020:   – 5%

  • Please ask for delivery times.
  • Prices do not include tax and are only valid outside of Italy.
  • For individuals in the European Union 22% Italian vat will be added.

It is now possible to make a pre-order of a TI-160 Wynne Corrector

Filling the following format does not oblige the purchase.

PRE-ORDER

Here some optical performances simulations for f/3.5,  f/3.0 and f/2.5    – 500 mm diameter parabolic mirror.

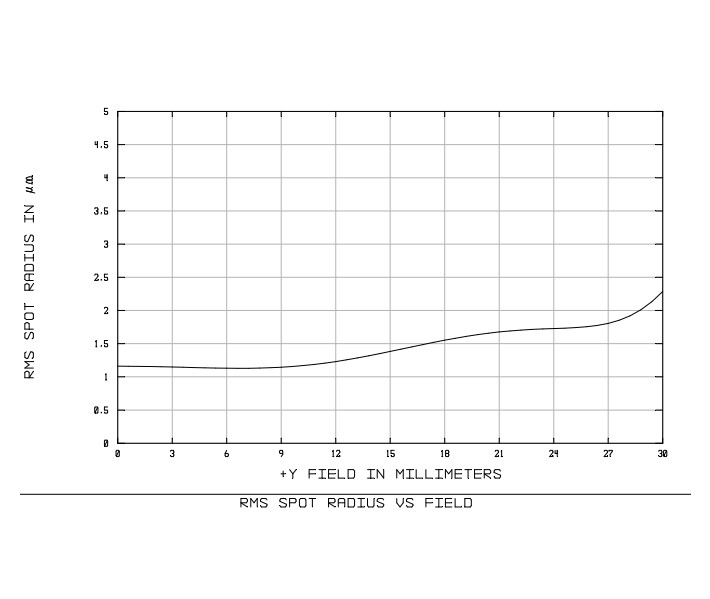

500 mm f/3.5

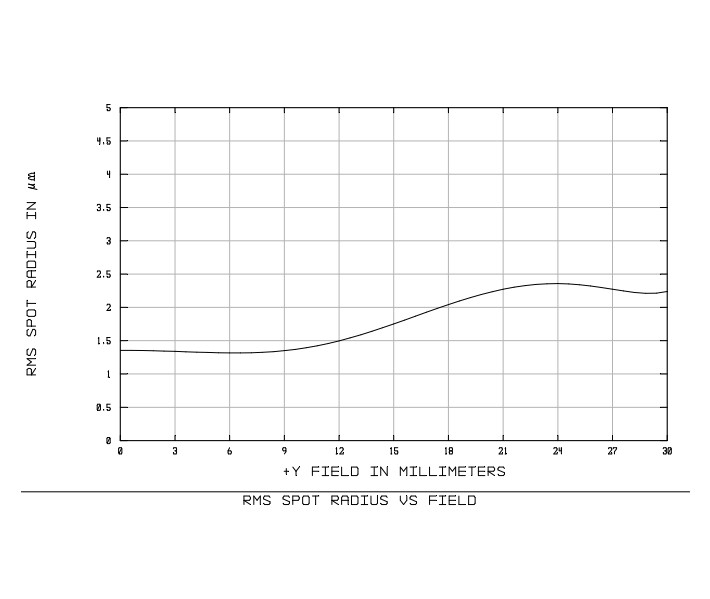

500 mm f/3.0

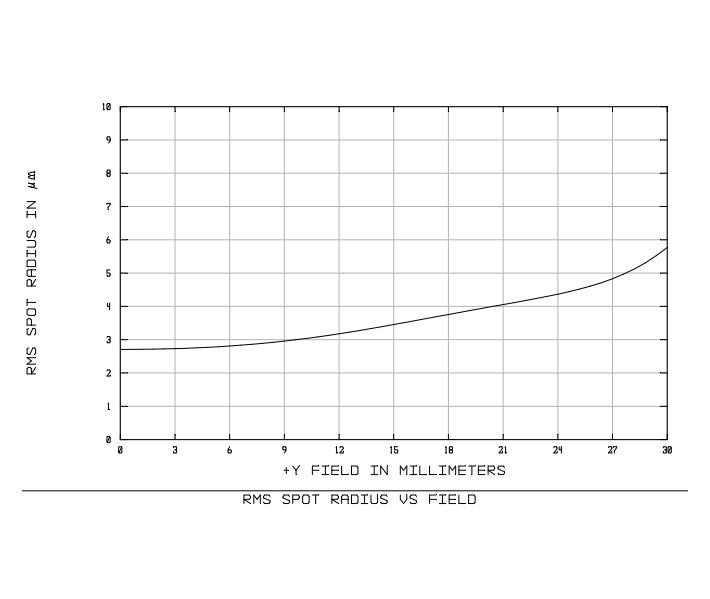

500 mm f/2.5

Here some optical performances simulations for f/3.5,  f/3.0 and f/2.5    – 600 mm diameter parabolic mirror.

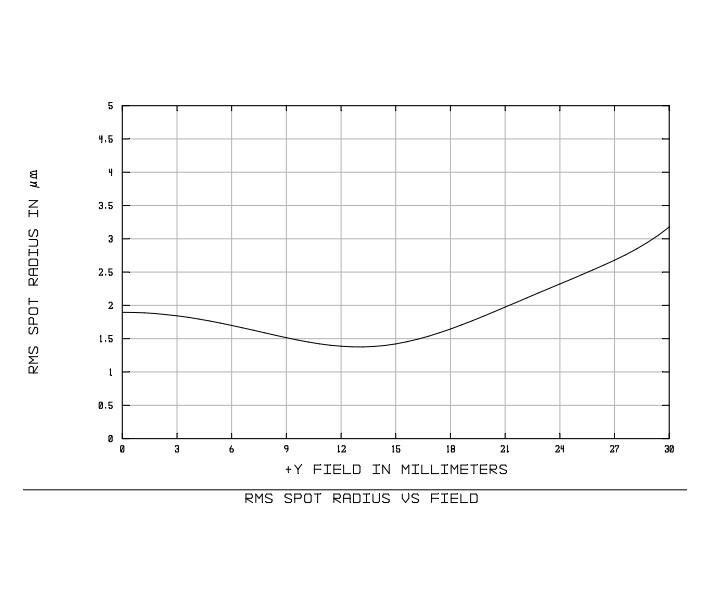

600 mm f/3.5

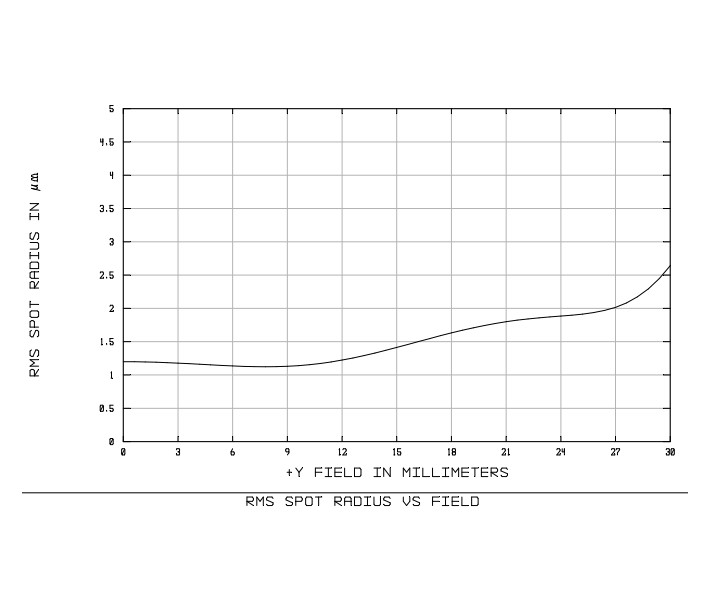

600 mm f/3.0

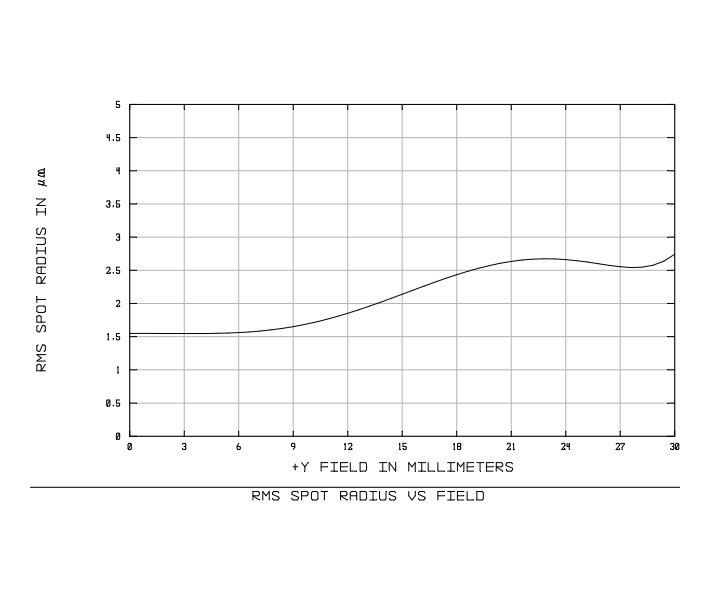

600 mm f/2.5

Here some optical performances simulations for f/3.5,  f/3.0 and f/2.5    – 700 mm diameter parabolic mirror.

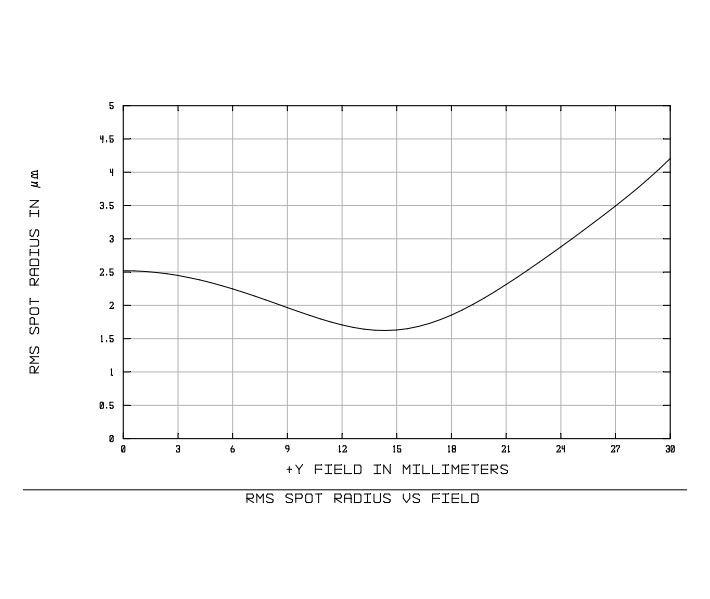

700 mm f/3.5

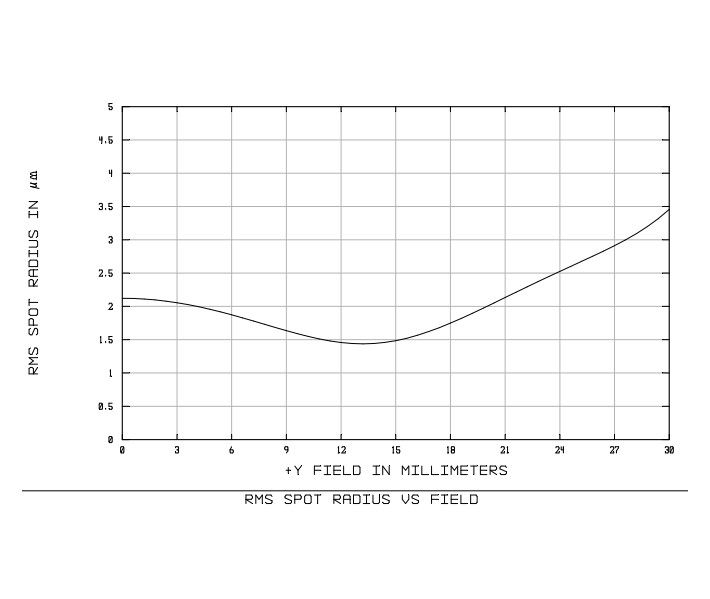

700 mm f/3.0

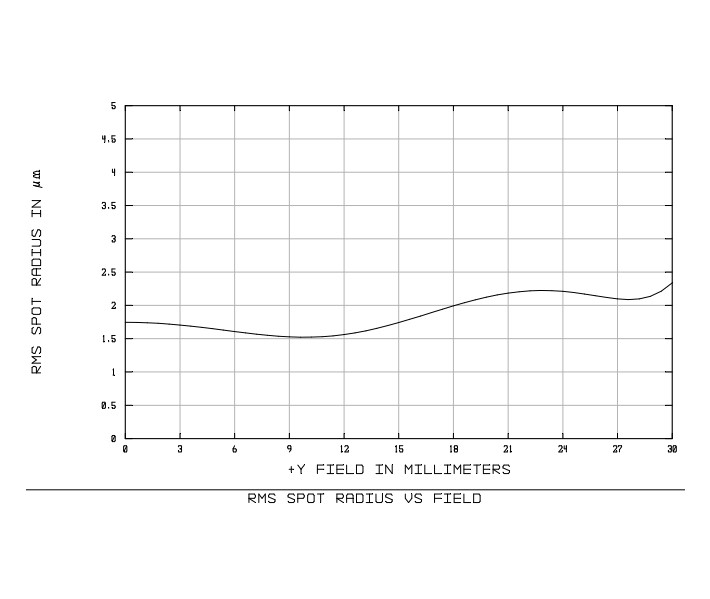

700 mm f/2.5
