ACCESSORIES FOR TI ASTROGRAPHS

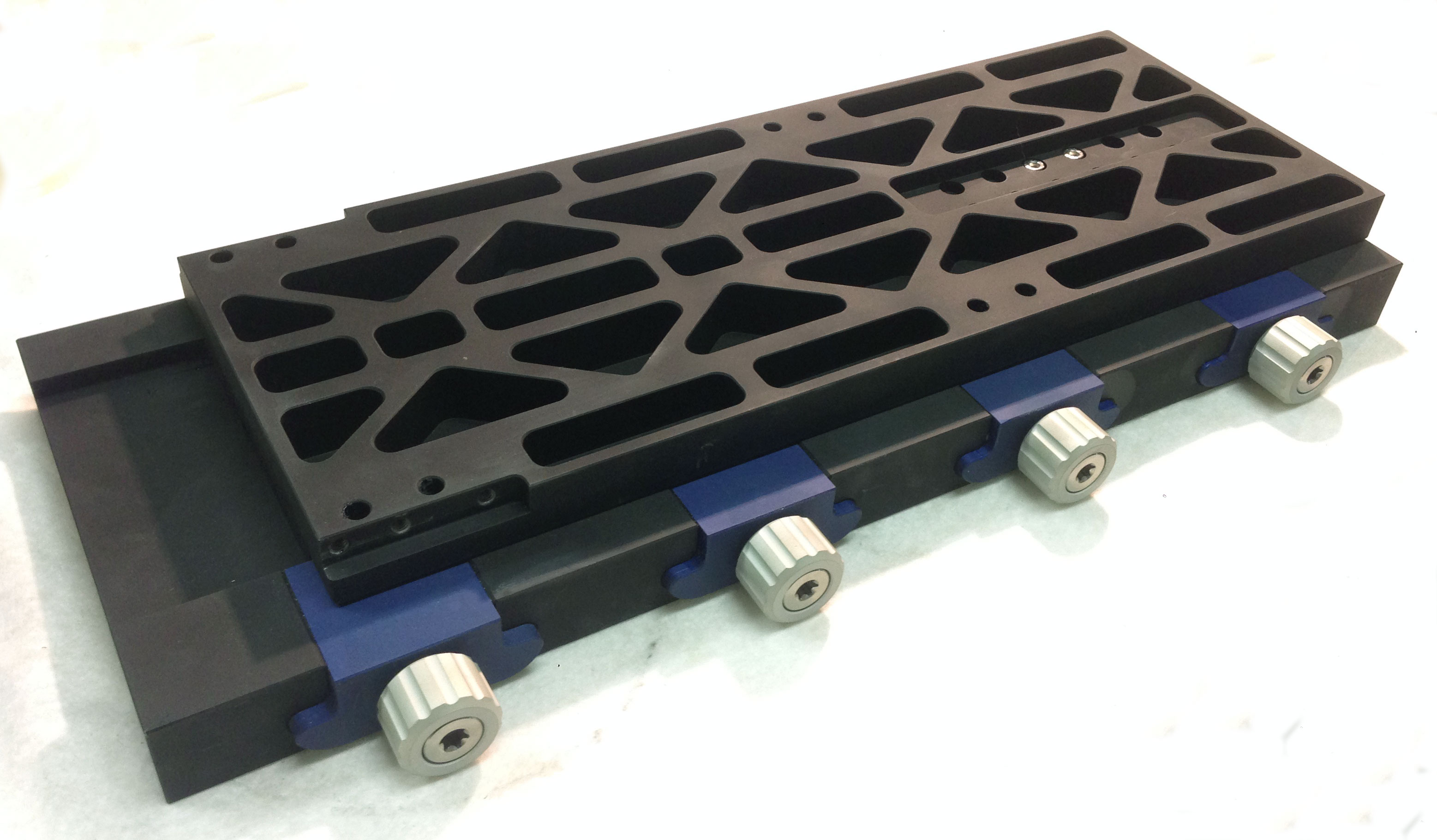

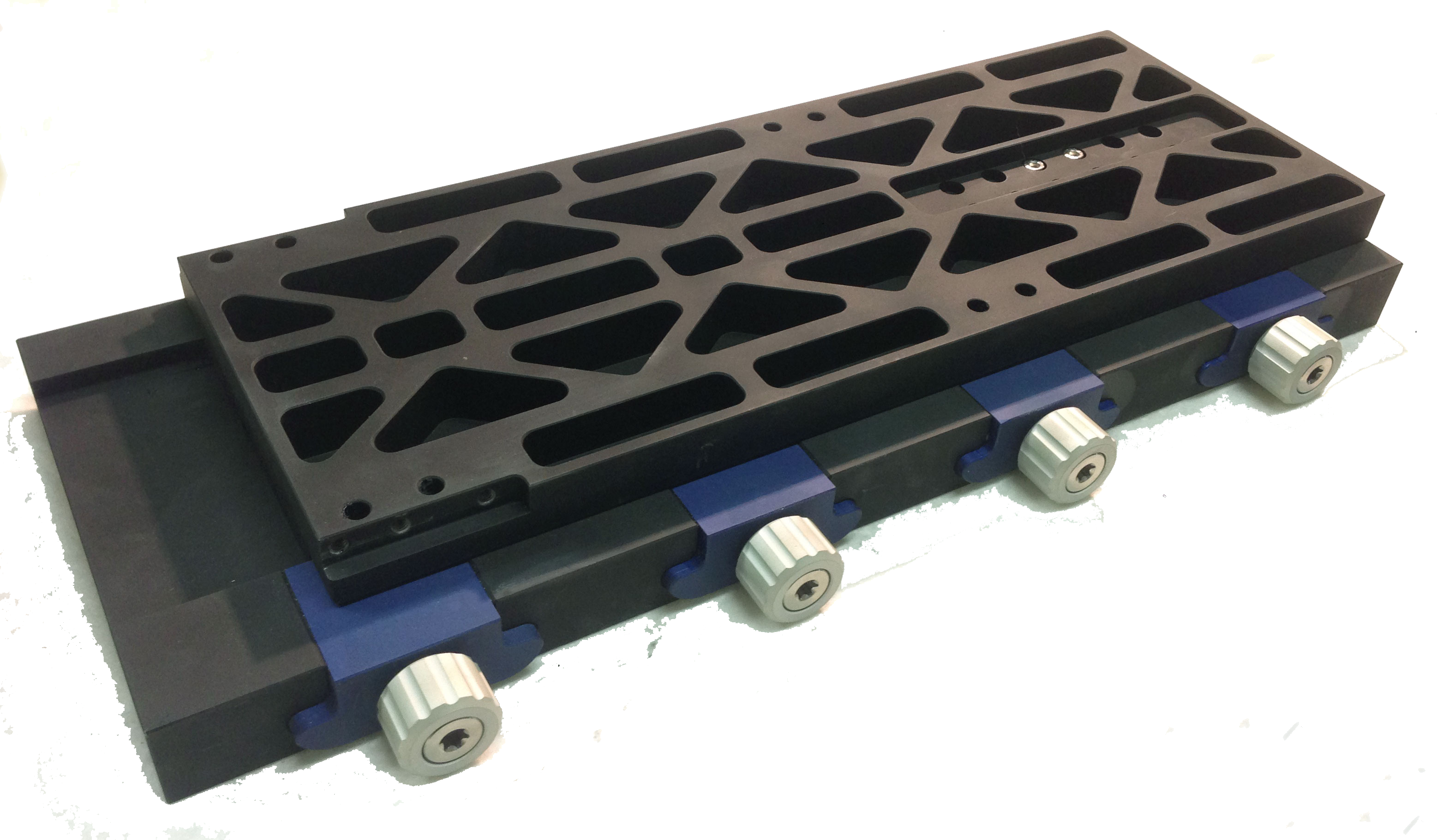

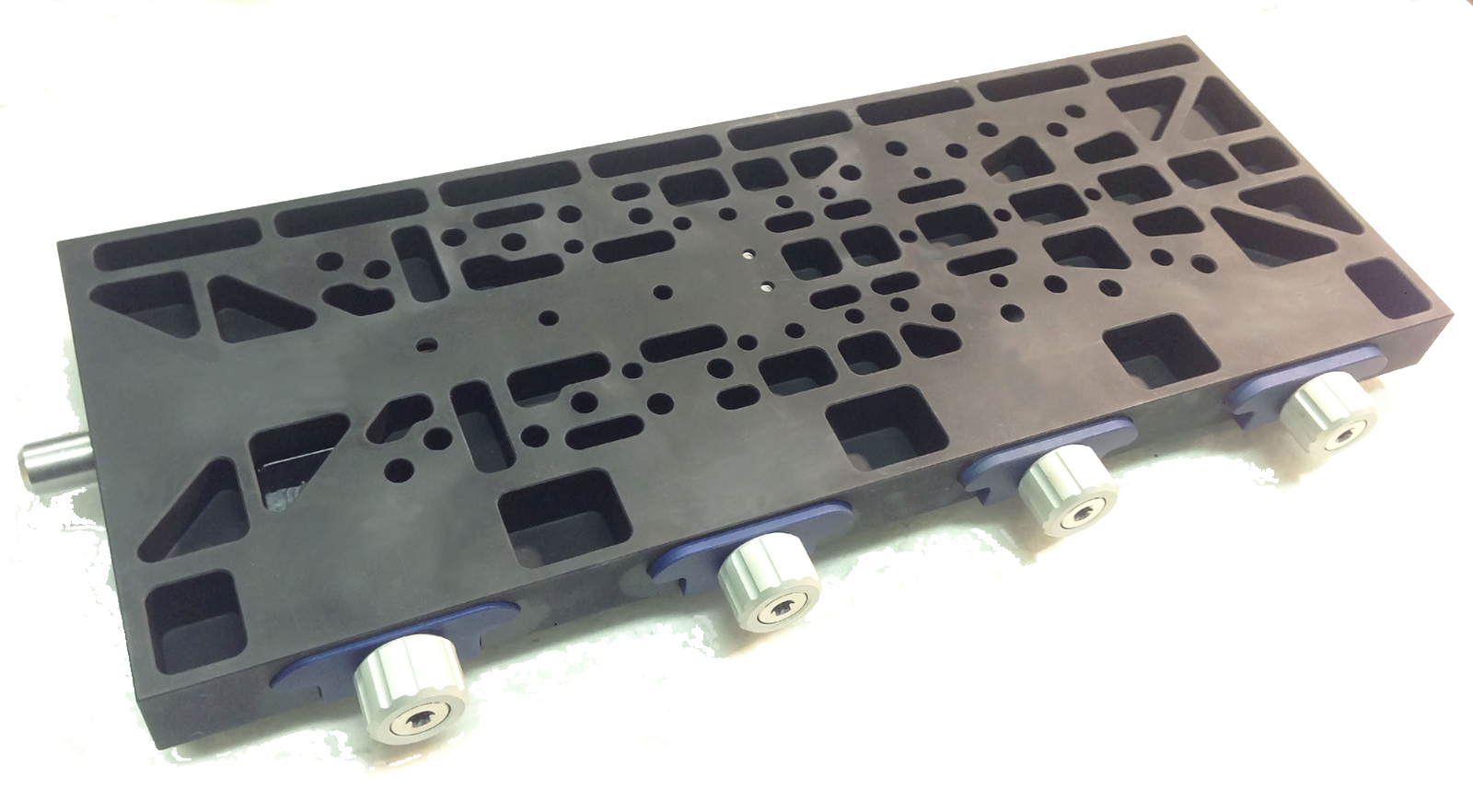

TI-112 DOVETAIL SYSTEM
Our heavy duty TI-112 Dovetail System has a fine and secure system to do a precise balance in the declination axes of our Astrographs, only with a screw wrench and one person.
Saddle plate has four clamps with special shape and +/- 120 mm of adjustable position travel with always at least three clamps holding the dovetail.
Holes patterns suitable for Paramount, Astro-Physics and 10Micron Mounts.
Length: 400 mm Aluminium Dovetail – Aluminium Saddle plate
Suitable for TI45, TI55 and TI65 series Astrograph
PRICE: € 1.680,00 + VAT

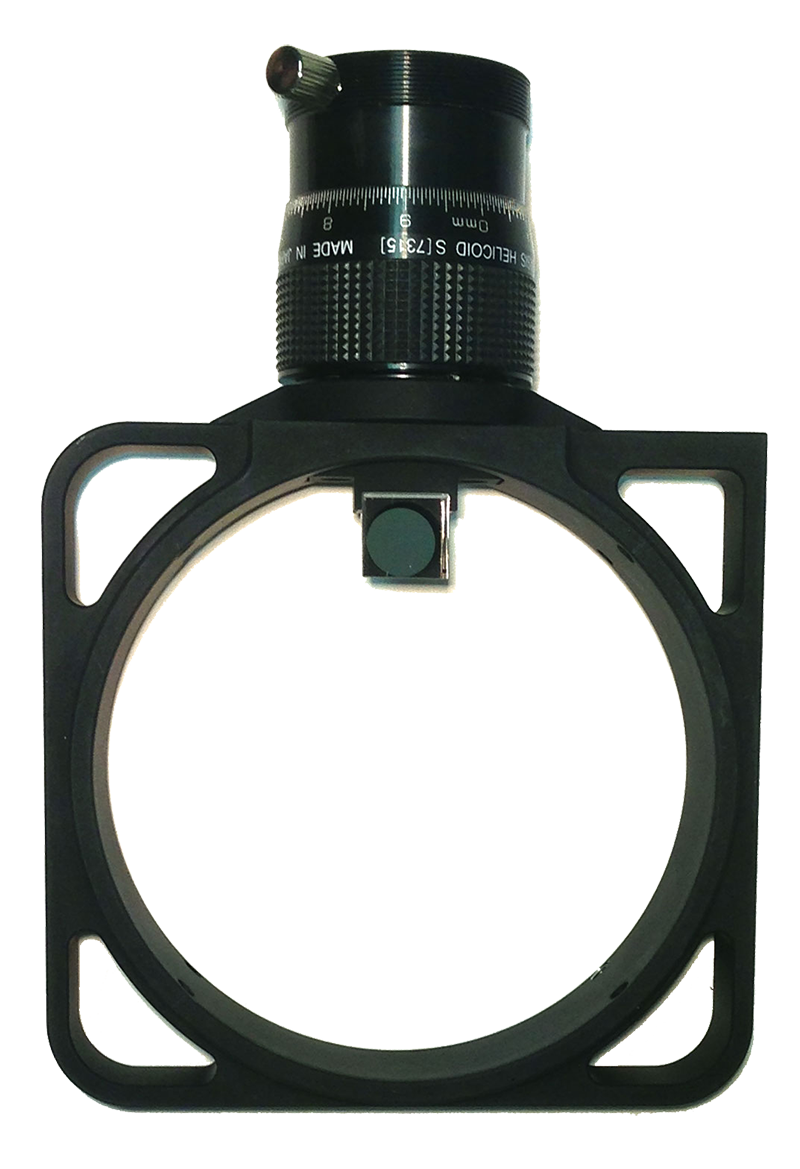

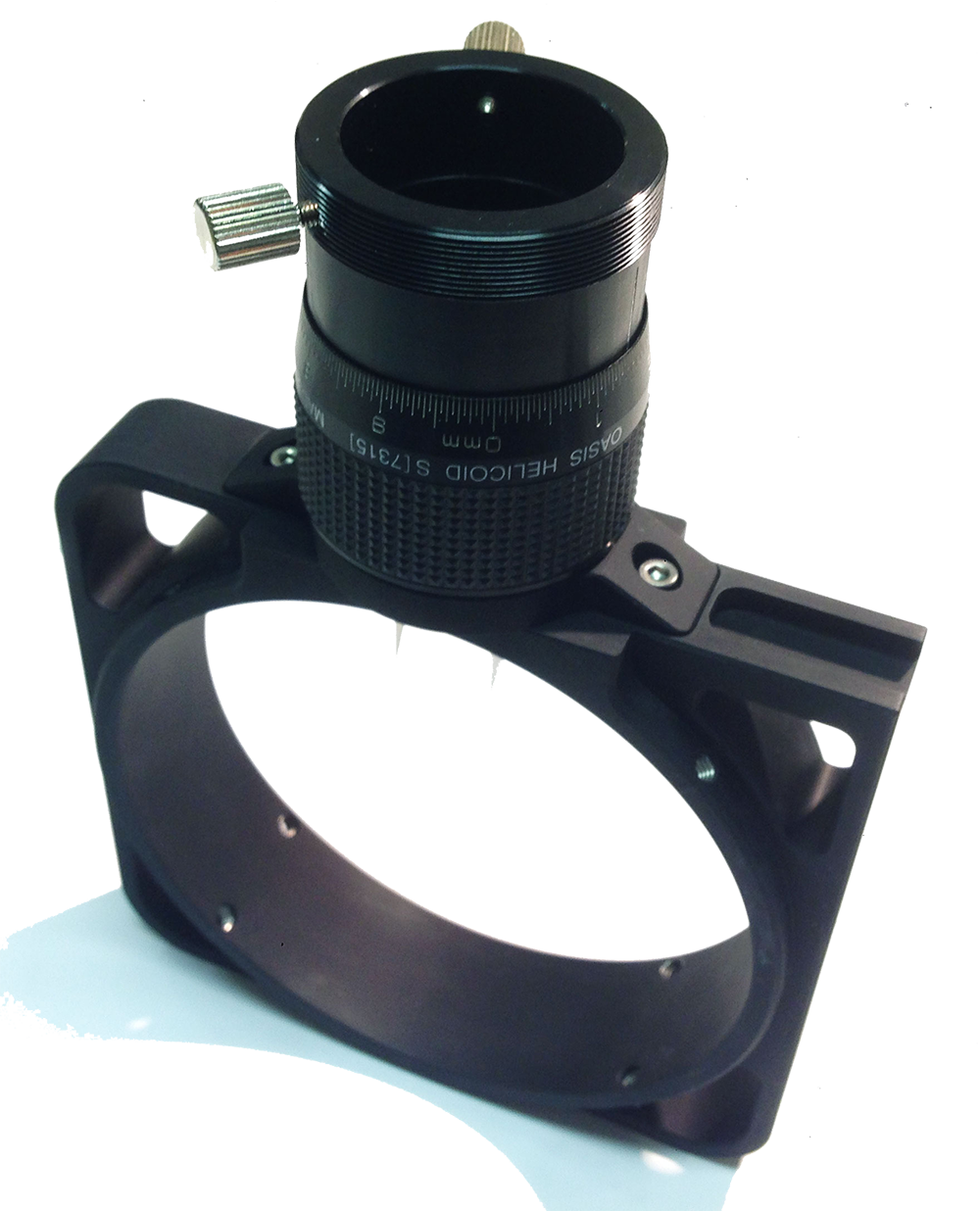

TI-106 OFF-AXIS GUIDER
- Smallest backfocus: 30 mm (1.18”)
- Extremely wide Central opening: 106 mm (4.17”) for very fast optics and very big sensor
- Big and High quality Prism:
- 15 mm – N-BK7 AR Coated Legs (350 – 700 nm) for more illuminated guider sensor
- Surfaces Flatness: λ/10
- Helical focuser for easy focuser – stepper motorized option: add € 390,00
- Spacers to place pick-off optic further into the light beam
- All parts CNC machined and lightweight design
- Very low reflectance anodization
Suitable for TI 35, TI45, TI55 and TI65 series Astrograph
PRICE: € 980,00 +VAT

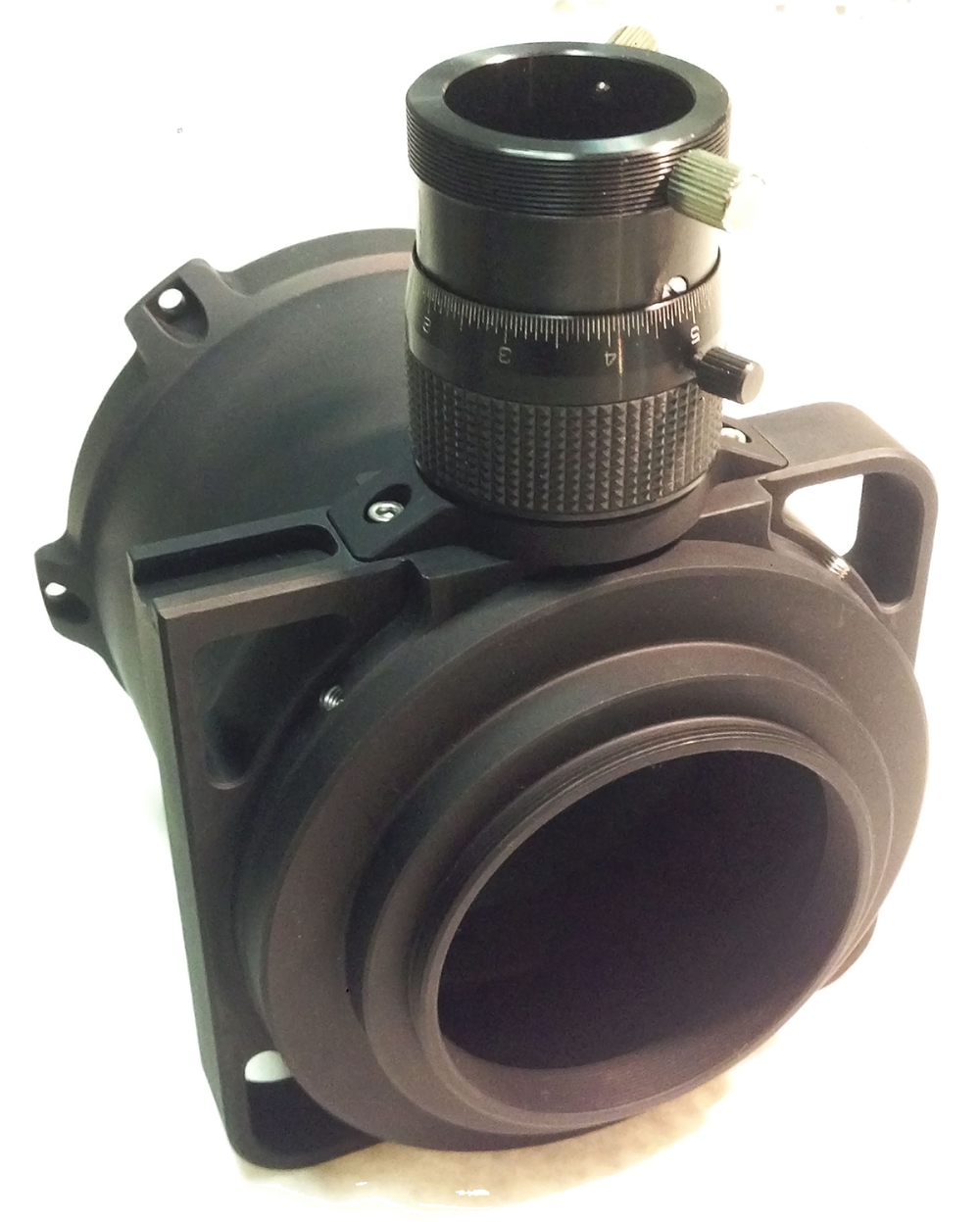

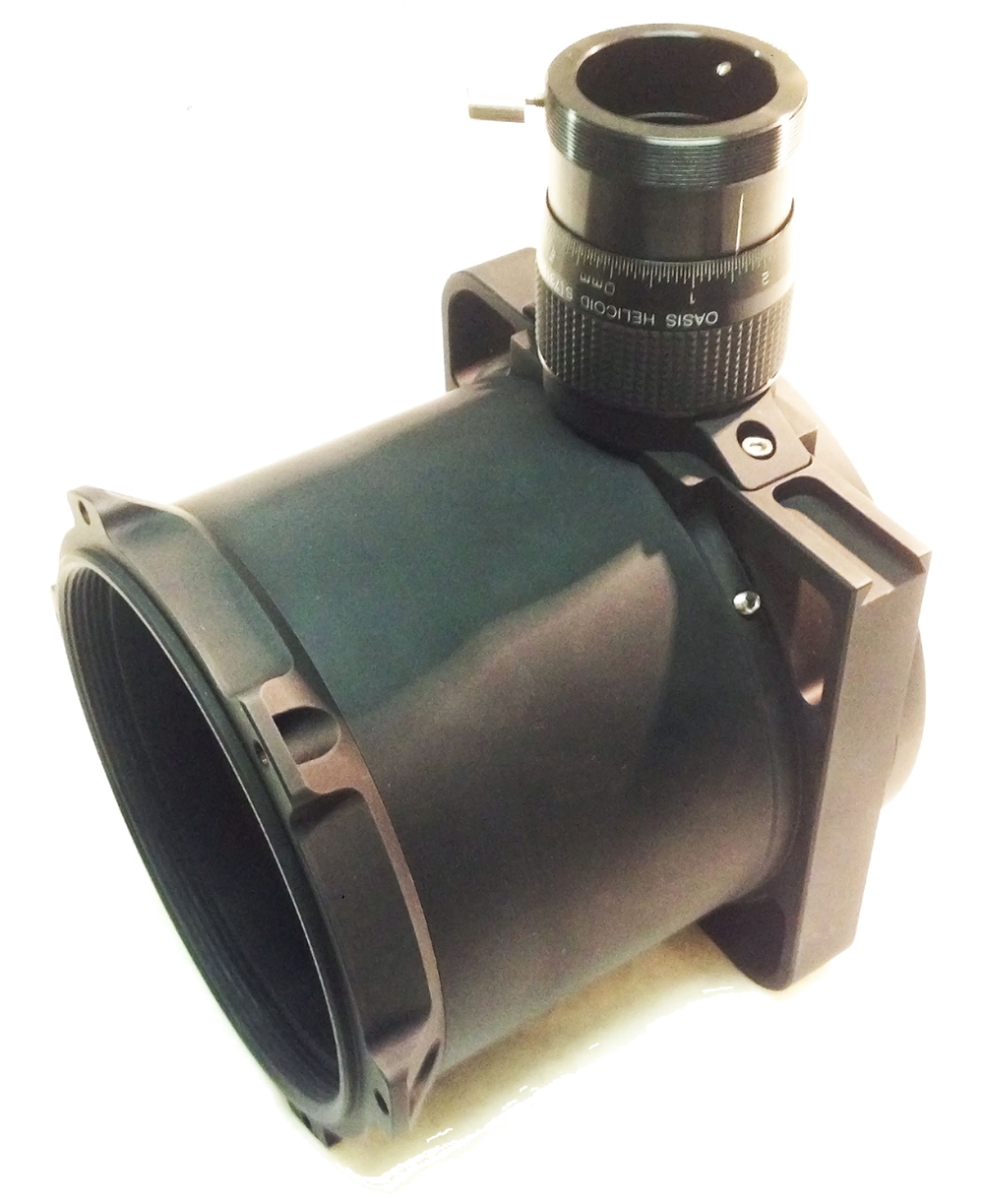

CAMERA ADAPTERS:
- custom built adapter from our TI Astrographs to the TI106-OAG and from TI106-OAG and your camera to precisely match back focus distance. Ultra dark matte anodization.
Suitable for TI35, TI45, TI55 and TI65 series Astrograph
PRICE: € 480,00 +VAT

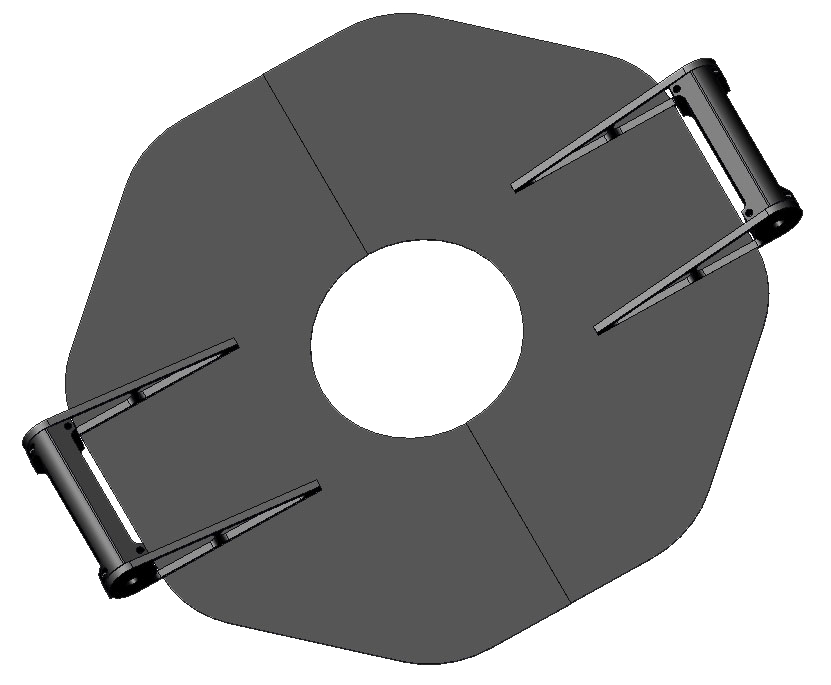

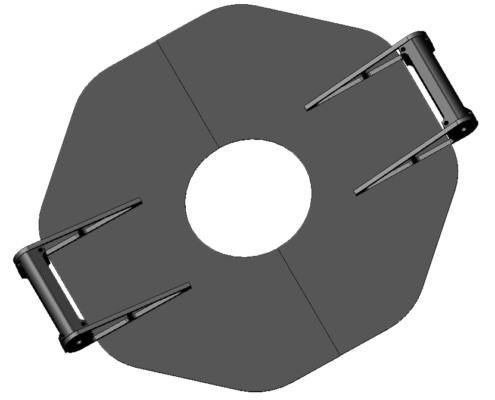

TI-35 DUST COVER:
Motorized carbon Dust Cover for primary mirror – easy installation and just plug and play with our Software Suite.
Suitable for TI35
PRICE: € 1.690,00 + VAT
TI-35 – TI-110 Field Rotator:
110mm Field Rotator: 110 mm clear aperture rotator (4,33”)
To be fully integrated into the back plate, 160 mm warm wheel with a precision stepper motor drives high precision preloaded steel cross roller bearing for a stiff and precision rotation (0.64”/step) and extremely Low axial/radial run-out error (less than 7 micron measured – VIDEO). It carries tens of kg payload, with no effect.
Simply installation, removing the rear flange, install the Field Rotator and plug the connector.
PRICE: € 3.280,00 + VAT
TI- 1205 Power Supply
High Quality TI 1205 Power Supply delivers stabilized two channel 12 V DC and 5 V DC and 205 W. It integrates the best quality component as the Mean Well PID-250 isolated dual output power supply with PFC function.
It delivers 15 A @ 12 V and 5 A @ 5V very low ripple (120 mVp-p @ 12 V – 50 mVp-p @ 5 V).
Input Voltage Range: 90 – 264 VAC
The TI 1205 include both channel Voltage and Current display measurement and custom high quality silicon cable to connect to the OTA
PRICE: € 690,00 + VAT

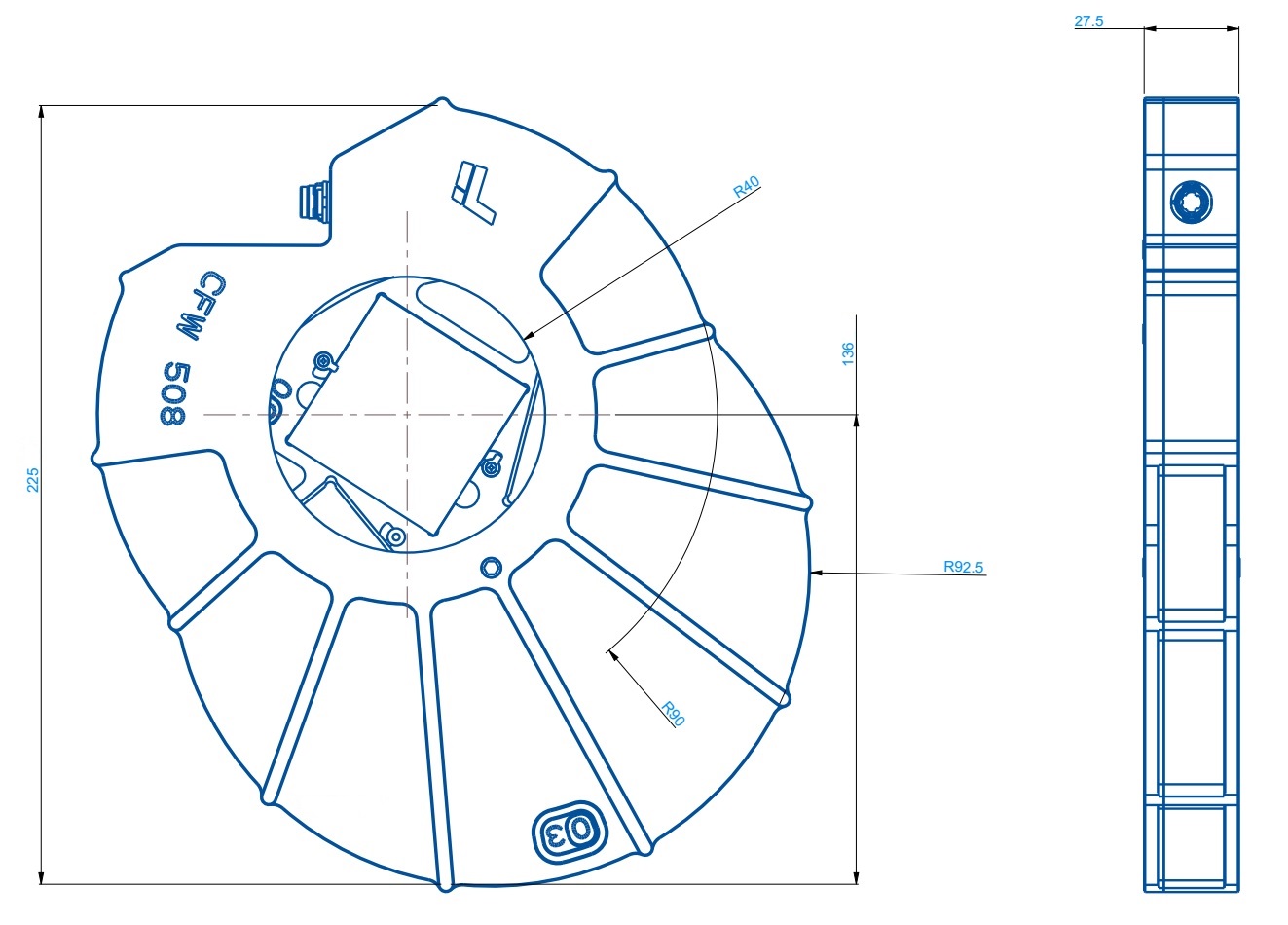

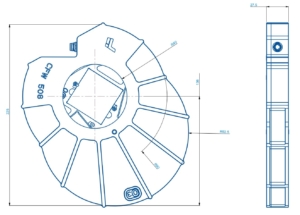

COMPACT FILTER WHEELS
Especially designed for our TI Prime Focus Astrographs, it includes an innovative system that assure the minimal front coverage. The TI CFW 508 can be used whenever there is a need to have the slightest obstruction.
- TI CFW 508 – Most compact Filter Wheel on market
- 8 positions + 2 open position
- 50×50 square filters (unmounted)
- Filter thickness: 1 to 5 mm
- USB
- Overall thickness: 27.5 mm
Price: € 2.870,00 +VAT
