TI 65 f/4.7 Astrograph – OPTICAL PERFORMANCES
Telescopi Italiani has decided to show a full review about the awesome optical performances of our TI 65 f/4.7 Astrograph
No other manufacturer shows detailed diagrams like these.
The Spot Diagram and the other performance diagrams, was calculated:
- On Axis (1)
- 11.6 mm from axis – corner of the KAF8300 (2)
- 17.29 mm from axis – corner of the KAF16200 (3)
- 26.10 mm from axis – corner of the KAF16803 (4)
- 30.65 mm from axis – corner of the KAF39000/KAF50100 (5)

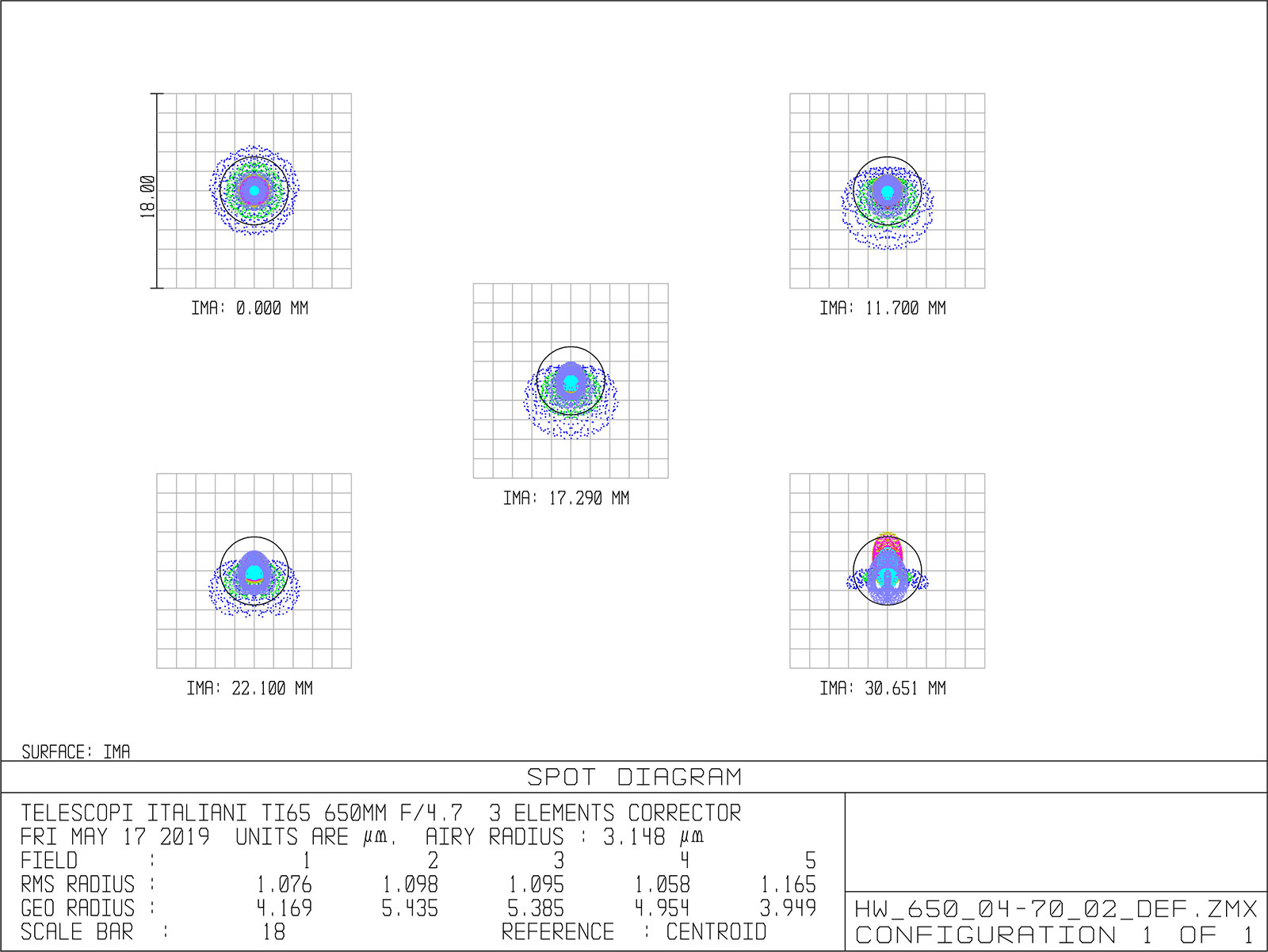

TI 65 WPF f/4.7 Astrograph (650 mm aperture- 3050 mm focal length): IT IS REPRESENTED THE SPOT DIAGRAM CONSIDERING THE WAVELENGHT FROM 400 TO 700 nm.TI 65 f/4.7 – Spot Diagram

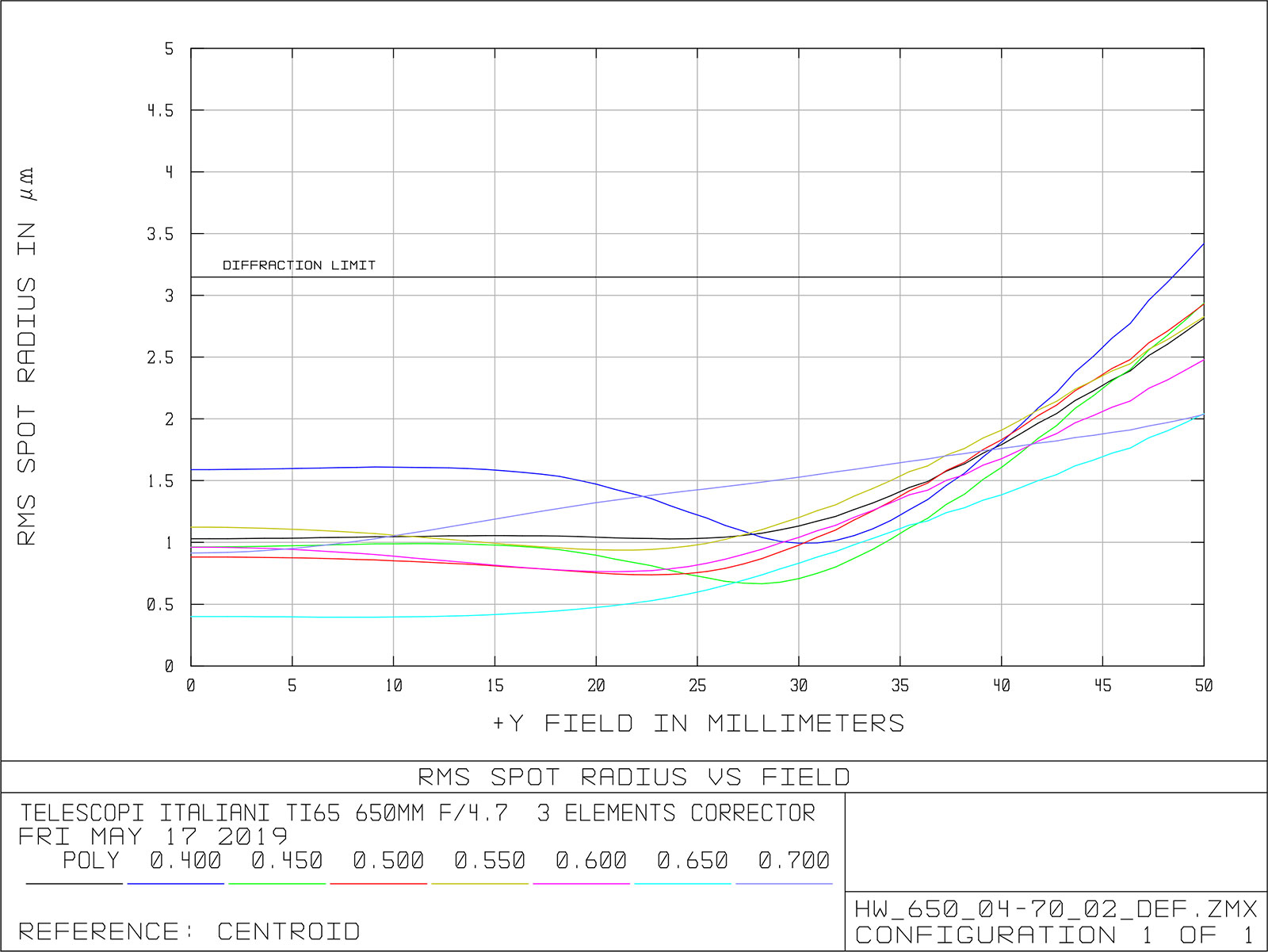

THE GRAPH BELOW SHOWS A SPOT DIAGRAM vs FIELD MORE THAN 50 MM OFF-AXIS (>100 MM REAL DIFFRACTION LIMITED CORRECTED FIELD – Despite the fast f/4.9 ratio)

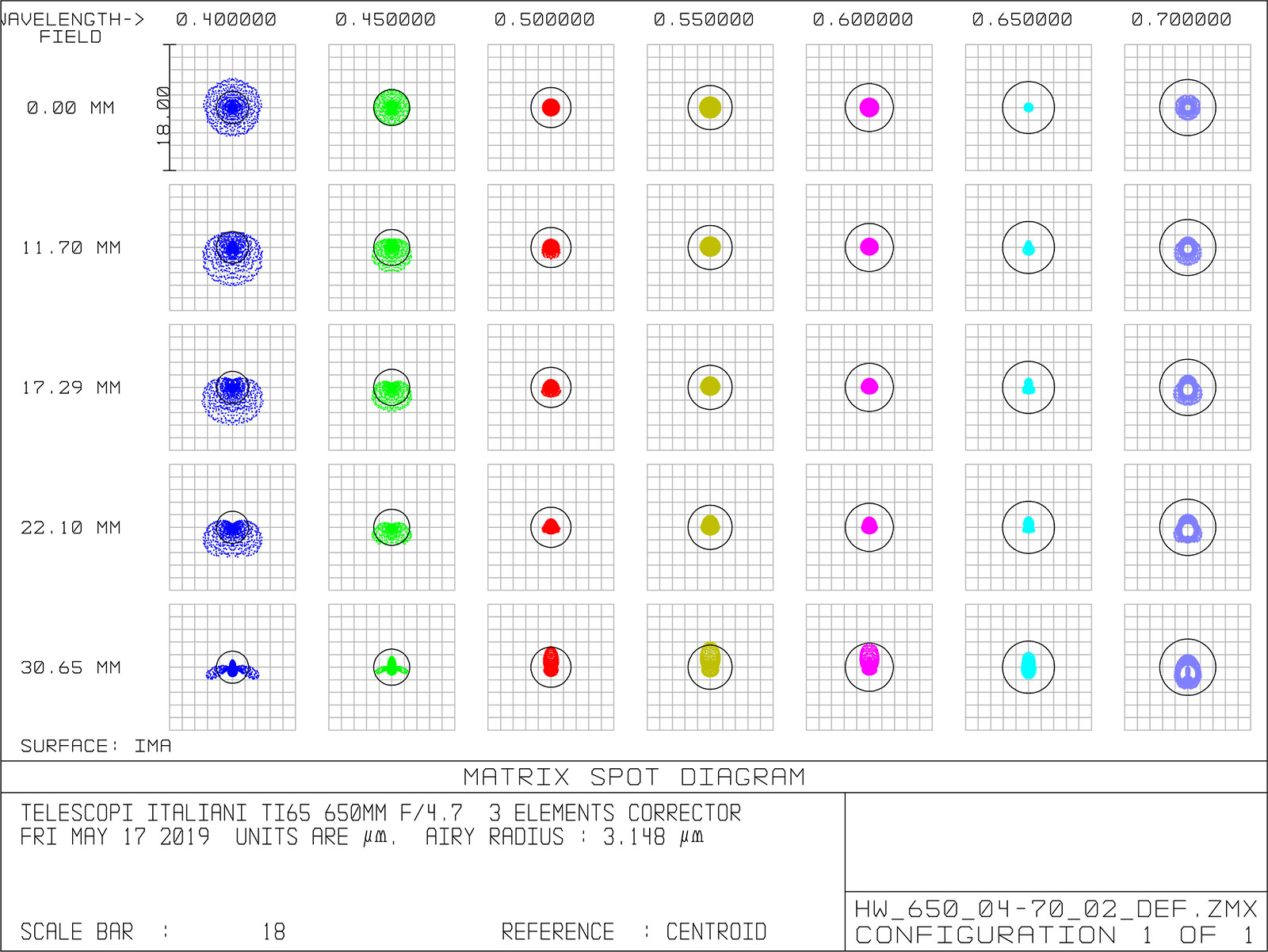

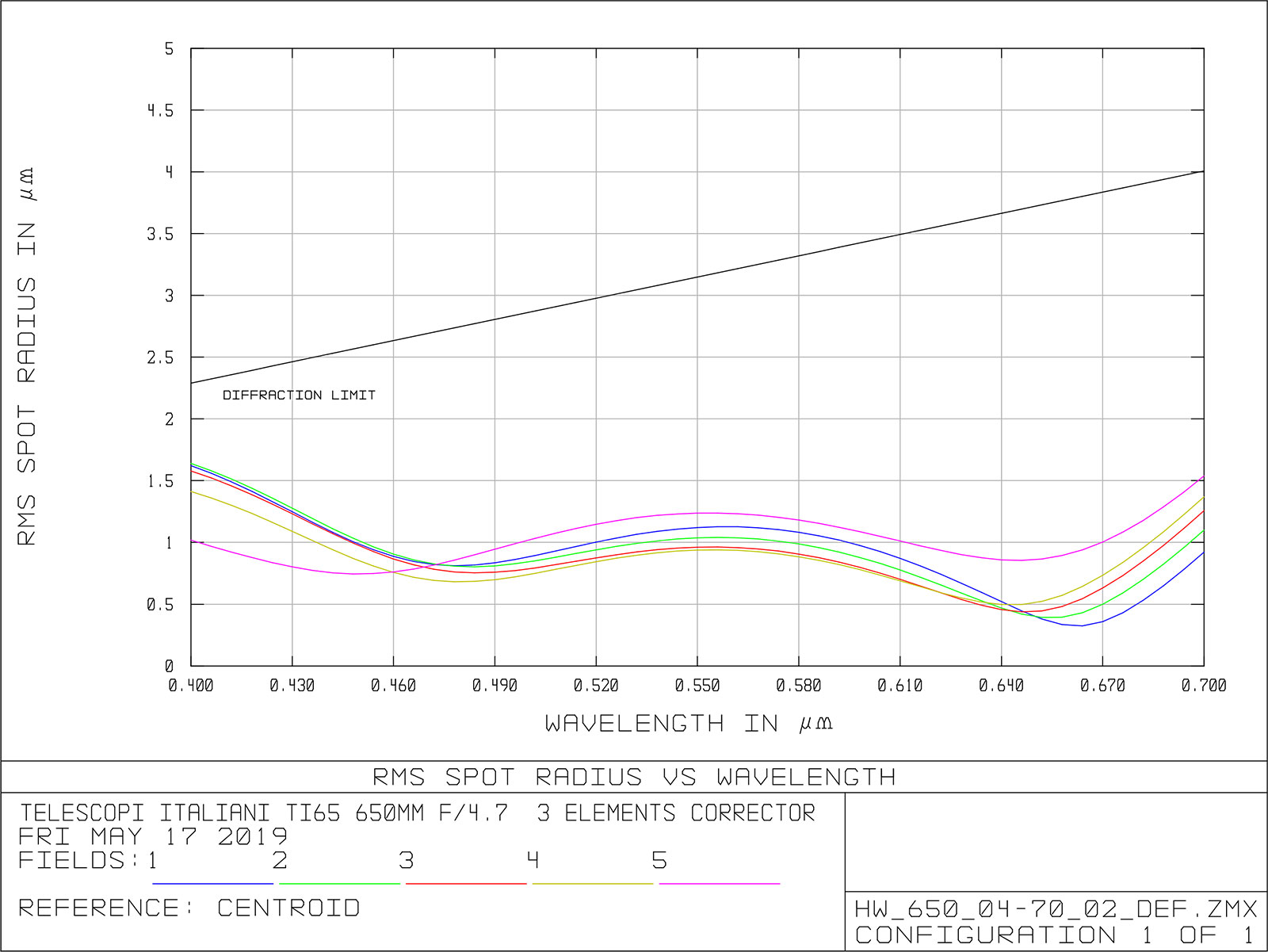

SPOT DIAGRAM vs WAVELENGTH
A very important diagram that nobody shows. Only after analyzing these curves we can see that the optic is really excellent for every wavelengths. The black line is the Airy Disc radius, the numbers are the five fields.

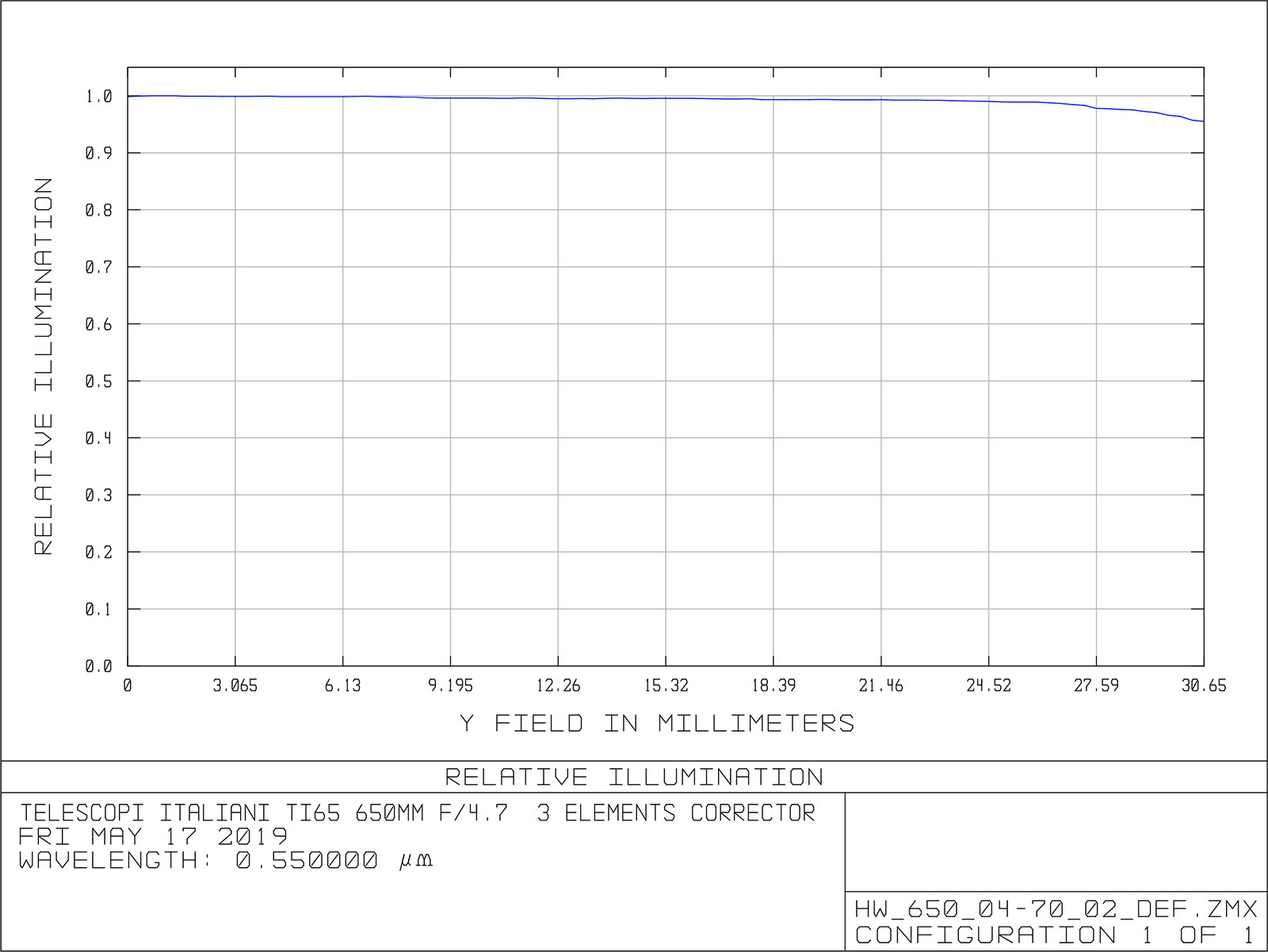

The Relative Illumination curve is the ratio between the light hitting the focal plane and the total light incoming. To obtain a good illumination for this f/4.7 astrograph, was been necessary to optimize secondary mirror diameter, corrector lenses diameter and relative distances. For the TI 65 series, we have the best field illumination still having reduced obstruction.

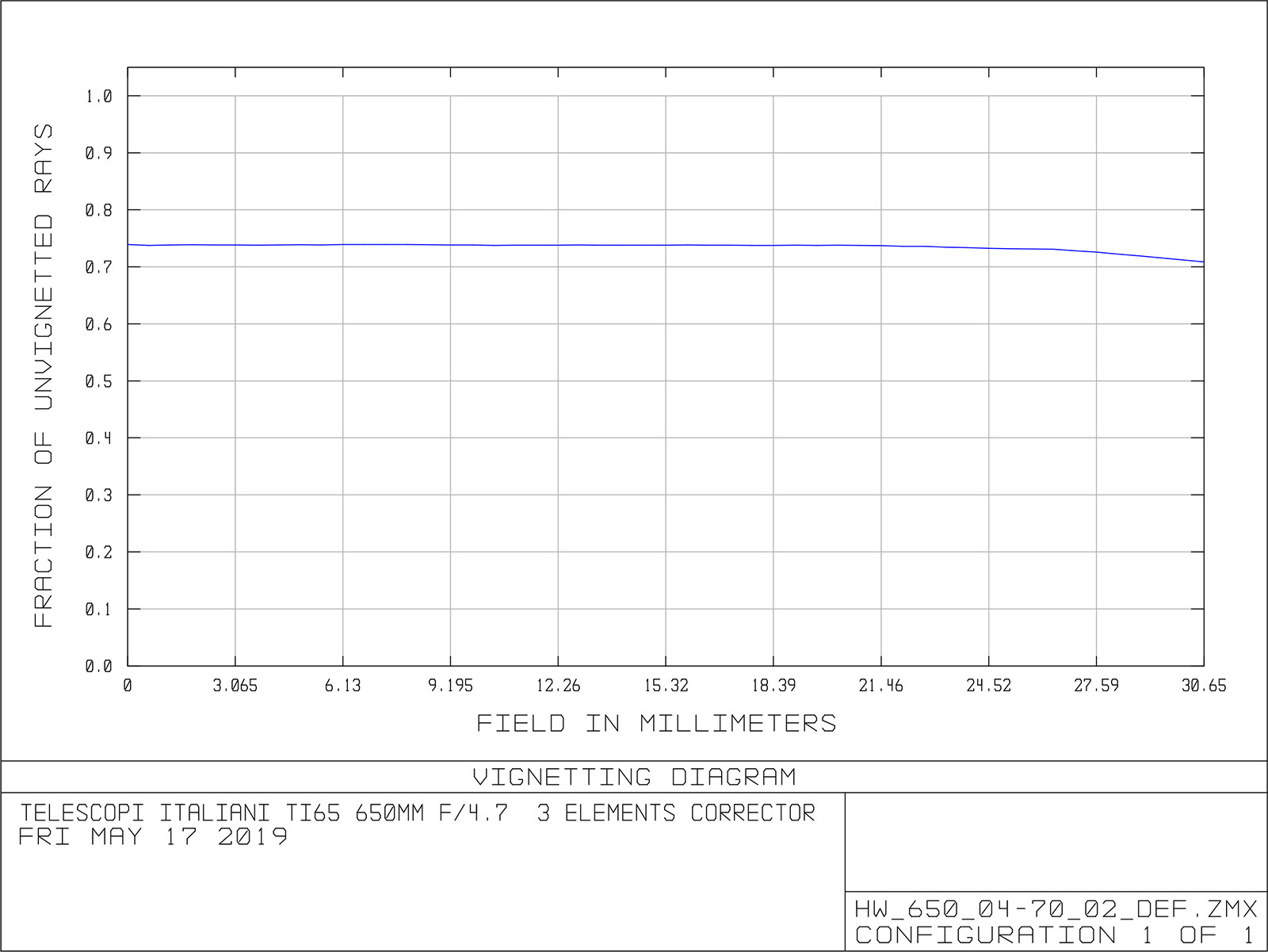

TI65 f/4.7 Vignetting Diagram[/caption]
NOTHING WILL BE SEEN AS BEFORE
