TI Series
Wynne Prime Focus Astrograph
Main Technical features
The TI WPF Series Astrographs is a super‑fast, large‑aperture imaging systems. Thanks to a specially designed large Wynne corrector (164 mm diameter), it achieves an impressive f/2.6 focal ratio with excellent field correction and coverage. The optical design ensures very low obstruction and easy collimation thanks to the limited number of optical elements.
It comes with full carbon/aluminium sandwitch structure, Lightweight Quartz primary mirror (as Option for the TI WPF 45) and integrated electronic system for a full telescope control via WiFi and Ethernet connection for remote observatory.
The WPF Astrograph delivers a very high hourly imaging throughput, making it particularly well‑suited for covering the largest possible sky area in the shortest time — ideal for all SSA operations
The models
- TI WPF 45: 450 mm clear aperture. f/2.6
- TI WPF 55: 550 mm clear aperture. f/2.6
67 m Corrected Field
Up to IMX411 Cmos sensor corner
Easy Collimation
One mirror and one corrector
Illuminated wide field
90% at 60 mm. 80% at 67 mm
Lightweigth Mirrors
60% Quartz Lightweight mirror
Huge Wynne Field Corrector
164 mm 3 lenses High Performance
Low Obstruction
35% for TI WPF55, 42% for TI WPF45
Heavy Duty Focuser
Prime Focus Focuser Harmonic Driven
Huge Backfocus
82 mm
TI WPF 45
TI WPF 45 f/2.6 MODEL SPECIFICATIONS:
- Optical Configuration: Modified Harmer Wynne
- Clear Aperture: 450 mm – Quartz mirrors – Al enhanced (Lightweight on request)
- Focal length: 1180 mm f/2.6
- Corrector: 164 mm 3-Lenses ED
- Obstruction: 43 % by diameter
- Corrected Field: 67 mm (Up to IMX411 Cmos sensor corner)

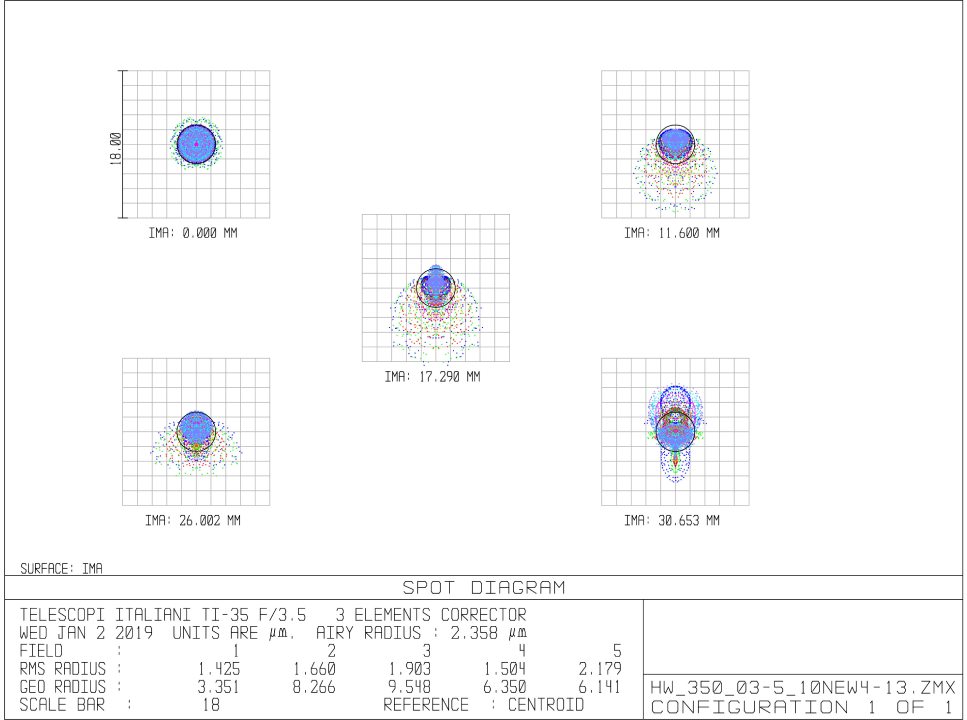

- Spot Diagram RMS Diameter on axis – Poly 400-700 nm: 2.49 micron
- Spot Diagram RMS Diameter @ 26 mm from axis – Poly 400-700 nm: 6.02 micron
- Spot Diagram RMS Diameter @ 33.5 mm from axis – Poly 400-700 nm: 6.48 micron
- Loss of light (vignetting) @ 26 mm from axis: 6.0 %
- Loss of light (vignetting) @ 33.5 mm from axis: 12.0 %
- Back Focus from rear flange: 82
- Overall dimensions: 1250 x 560 x 560 mm
- Weight: 46 kg
- Structure: Full Carbon fiber truss poles + carbon fiber / aluminium sandwich structural body
- Integrated Electronic Control System for full remote control WIFI and Ethernet connection
- Full automated thermal control system
- Built in prime focus Electronic Focuser (ASCOM Alpaca compatible)
- Automated Dust Cover (option) (ASCOM Alpaca compatible)
- TI-112 Dovetail System (option) for fast and easy OTA balancing
TI WPF 55
TI WPF 55 f/2.6 MODEL SPECIFICATIONS:
- Optical Configuration: Wynne Prime Focus
- Clear Aperture: 550 mm – Lightweight Quartz mirror – Al enhanced
- Focal length: 1430 mm f/2.6
- Corrector: 164 mm 3-Lenses ED
- Obstruction: 35.4 % by diameter
- Corrected Field field: 67 mm (Up to IMX411 Cmos sensor corner)
- Spot Diagram RMS Diameter on axis – Poly 400-700 nm: 3.3 micron
- Spot Diagram RMS Diameter @ 26 mm from axis – Poly 400-700 nm: 4.9 micron
- Spot Diagram RMS Diameter @ 33.5 mm from axis – Poly 400-700 nm: 7.5 micron
- Loss of light (vignetting) @ 26 mm from axis: 3 %
- Loss of light (vignetting) @ 33.5 mm from axis: 11 %
- Back Focus from rear flange: 82 mm
- Overall dimensions: 1540 x 740 x 740 mm
- Weight: 67 kg
- Structure: Full Carbon fiber truss poles + carbon fiber / aluminium sandwich structural body
- Integrated Electronic Control System for full remote control WIFI and Ethernet connection
- Full automated thermal control system
- Built in prime focus Electronic Focuser (ASCOM Alpaca compatible)
- Automated Dust Cover (option) (ASCOM Alpaca compatible)
- TI-112 Dovetail System (option) for fast and easy OTA balancing
