OUR ASTROGRAPHS SERIES
Telescopi Italiani offers a wide range of Astrograph solutions:
TI Series, fast, compact, high performance Modified Harmer-Wynne Astrographs.
TIn Series, superfast Hyperbolic Newtonian with unmatched performances at f/2.3
TI WPF Series, prime focus Astrographs for fast, large aperture remote solution.
ALL OUR ASTROGRAPHS STAND-UP FOR THE FOLLOWING FEATURES:
Quartz Mirrors
All Astrographs equipped with fine annealed Quartz mirrors
FEM Optimization
All mechanical parts FEM optimized
Stiffness, lightweight and Thermal stability
With Extensive carbon fiber structures
Connection
Wifi/Ethernet – Alpaca compliant
Integrated Electronic
All telescope under controll
Modern Italian Design
Up to date original design
TI Series
Modified Harmer Wynne Astrograph
How It is born
The TI Series Astrographs optical design is derived from the Harmer–Wynne configuration (first introduced and published in 1976 in the Monthly Notices of the Royal Astronomical Society, vol. 177, Oct. 1976). Compared to “standard” Harmer–Wynne instruments, TI has introduced an additional refractive element in the corrector, allowing the design to achieve a very wide corrected field over a broad wavelength range. These performance levels can be easily maintained even in very fast optical systems, down to f/3.
The models
- TI35: 350 mm clear aperture. f/3.5 and f/5.0 model
- TI45: 450 mm clear aperture. f/3.5 and f/5.0 model
- TI55: 550 mm clear aperture. f/3.5 and f/5.0 model
Diffraction Limited wide field
Up to 70 mm
Optical Design
High Performance Optical Design
Illuminated wide field
More than 90% at field edge
Lightweigth Mirrors
60% Quartz Lightweight mirror on request
Easy and Stable Collimation
Thanks to spherical secondary mirror
OTA Lightweight
20% lightweight than same diameter
Innovative Solutions
A lot of propretary features
Huge Backfocus
From 130 mm to 200 mm
TIn Series
Super Fast Hyperbolic Newton Astrograph
How It is born
The TIn Series Astrograph has been designed to meet all the requirements of ultra-fast imaging systems, aiming to surpass every record in hourly production rate. It is particularly well-suited for applications where maximizing results is crucial, covering the largest possible sky area in the shortest time — making it ideal for all SSA operations. It is also highly effective in rental systems, where achieving the highest number of frames per hour is essential. Its special optical configuration provides unmatched performance for such fast aperture ratios.
The models
- TIn 35:
- Clear Aperture: 350 mm
- Focal Length: 800 mm
- f/2.3
- TIn 45:
- Clear Aperture: 450 mm
- Focal Length: 1000 mm
- f/2.2
67 mm Corrected Field
Up to IMX411 Cmos sensor corner
Huge Field Corrector
120 mm 4 lenses High Performance
Illuminated wide field
More than 85% at field edge (67 mm)
Low Obstruction
Limited to 45%
Lightweight
20% lightweight than same diameter
Innovative Collimation
New secondary X-Y pivoting system
Huge Backfocus
81 mm
Heavy Duty Focuser
132 mm – Harmonic Driven Focuser

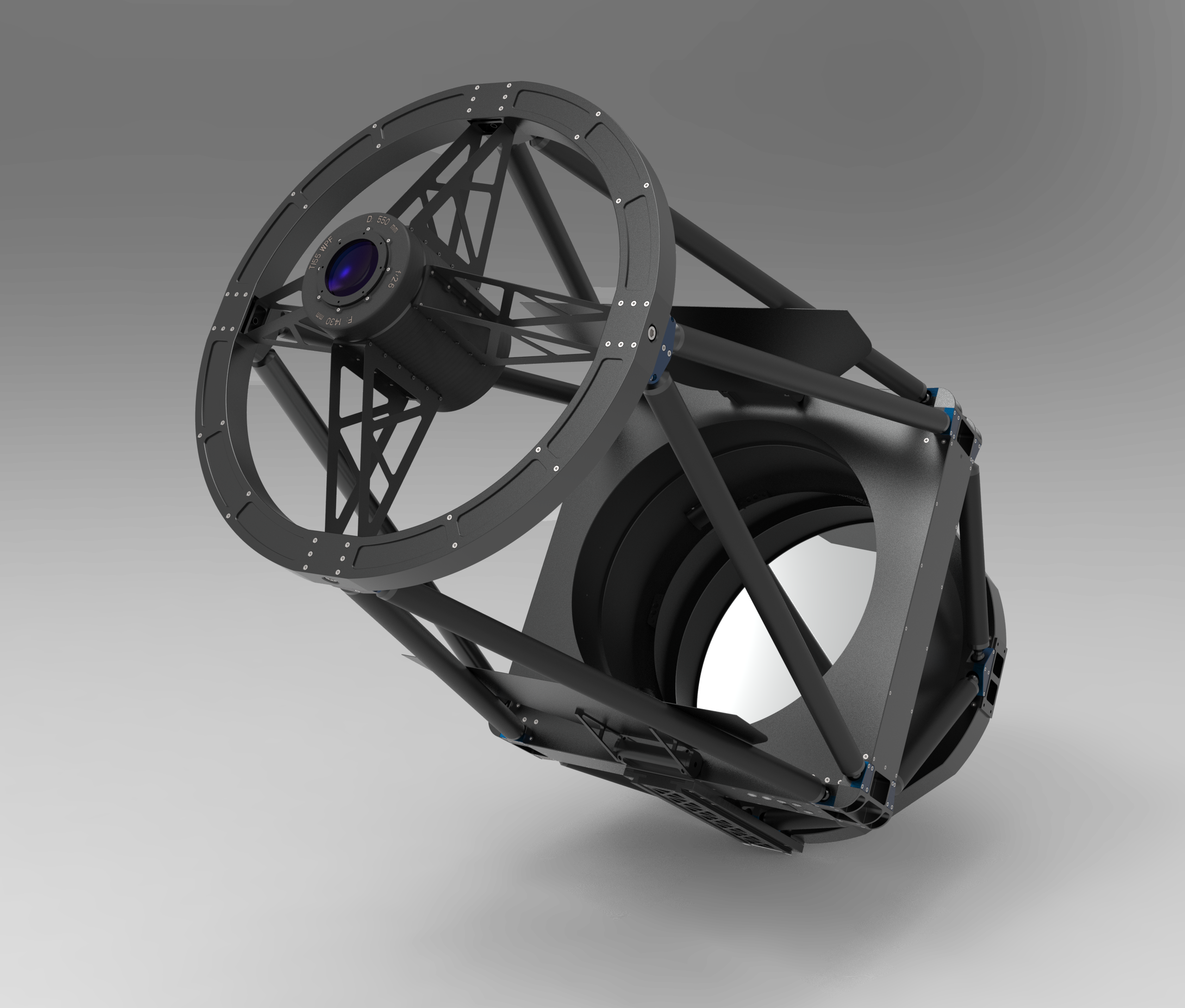

TI WPF Series
Wynne Prime Focus Astrograph
How It is born
The TI WPF Series Astrograph has been designed to meet all the requirements of super‑fast, large‑aperture imaging systems. Thanks to a specially designed large Wynne corrector, it achieves an impressive f/2.6 focal ratio with excellent field correction and coverage. The optical design ensures very low obstruction and easy collimation thanks to the limited number of optical elements. The WPF Astrograph delivers a very high hourly imaging throughput, making it particularly well‑suited for covering the largest possible sky area in the shortest time — ideal for all SSA operations. It is also highly effective in rental or remote‑hosting systems, where achieving the highest number of frames per hour is essential. Combined with our Compact Filter Wheel 508 (8 × 50×50 mm filters), this astrograph becomes the optimal solution for remote observatories.
The models
- TI WPF 45:
- Clear Aperture: 450 mm
- Focal Length: 1170 mm
- f/2.6 – Obstruction: 42%
- TI WPF 55:
- Clear Aperture: 550 mm
- Focal Length: 1450 mm
- f/2.6 – Obstruction: 35%
67 mm Corrected Field
Up to IMX411 Cmos sensor corner
Huge Wynne Field Corrector
164 mm 3 lenses High Performance
Illuminated wide field
90% at 60 mm. 80% at 67 mm
Low Obstruction
35% for TI WPF55, 42% for TI WPF45
Lightweight
20% lightweight than same diameter
Easy Collimation
One mirror and one corrector
Huge Backfocus
82 mm
Heavy Duty Focuser
Prime Focus Focuser Harmonic Driven
